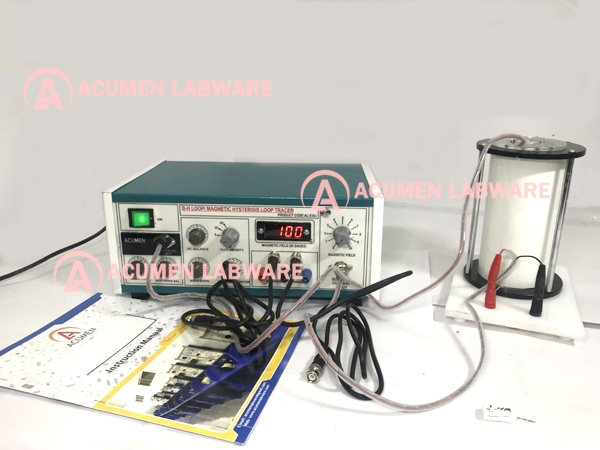

BH Curve Loop/ Magnetic Hysteresis Loop Tracer

Product Code:In stock

*An ENGLISH instruction manual with elaborate experimental procedures and block diagram etc. shall be provided with the training system set-up.

In this experiment when a cylindrical sample is placed coaxially in a periodically varying magnetic field the magnetization in the sample also undergoes periodic variation. This variation is packed up by a coil placed coaxially with the sample.

Vital topics:

• Magnetic induction.
• Magnetic induction.
• Magnetic flux.
• Magnetic field strength.
• Hysteresis.
• Remanent magnetization.
• Coercivity.
• Hysteresis loss.

Details

• No need of external current and voltage sensor’s.
• Input Frequency changeable 5 to 500Hz.
• Input Voltage changeable 0 to 10V.
• Modular approach.

List

• Exp-1 To find hysteresis loop of an iron core.
• Exp-2 To find corrosivity and retentivity of an iron core.
• Exp-3 To show the effect of varying voltage and frequency on hysteresis loop.
